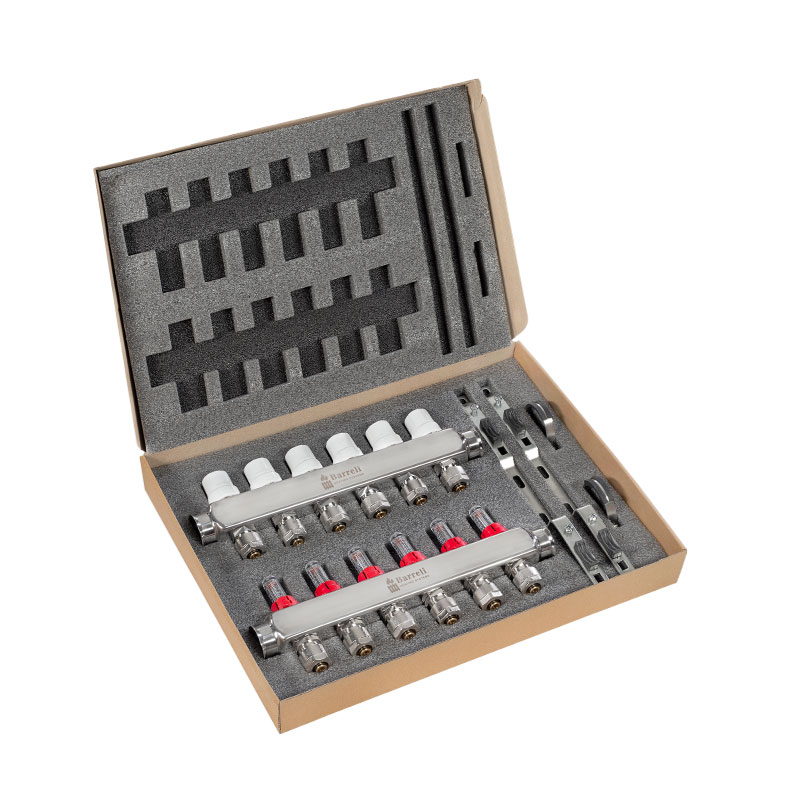

Barli Warm House Stainless Steel Manifold for Underfloor Heating with Flow Meters (Supply and Return)

Application of the Barreli Warm House Stainless Steel Underfloor Heating Manifold with Flowmeters

The use of a flow meter in an underfloor heating manifold should be considered a necessity, not an option. The flow meter on the Barli Warm House underfloor heating manifold allows you to see the flow rate (the amount of fluid passing through over a specific time). In addition, you can use the flow meter’s adjustment screw to set the flow rate of the fluid.

The ability to adjust the hot water flow in the stainless steel manifold with flow meters allows you to independently control the heating level for each room and space in your unit.

Barreli Warm House Stainless Steel Underfloor Heating Manifold Sizes

The Barreli Warm House underfloor heating manifold is available in two sizes:

• Body Size: 1 1/4″ (1″ x 3/4″)
  Available Configurations: 3 to 12 Supply & Return Circuits
• Body Size: 1 1/4″ (1″ x 16mm)
  Available Configurations: 3 to 12 Supply & Return Circuits

The selected number of outlets includes both a supply bar and a return bar. For example, a 5-outlet manifold consists of one 5-outlet supply bar and one 5-outlet return bar, complete with mounting brackets.

Features of the Barreli Warm House Stainless Steel Underfloor Heating Manifold with Flowmeters

• Because it is made with stainless steel, this product is highly resistant to rust and corrosion, especially when used with condensing systems.
• These stainless steel manifolds have a very high resistance to high pressure.
• The Barli Warm House stainless steel manifold allows for a greater volume of heated water or liquid to be distributed, which facilitates a faster heating speed.
• The manifold has standard threaded connections and an appropriate branch pipe diameter for easy installation in various piping systems.
• It can be used in low- and high-temperature systems, making it suitable for all types of heating and cooling systems.
• Stainless steel manifolds have much better compatibility with underfloor heating systems compared to other types of manifolds.
